Few revolvers have a résumé as long or as respected as the Smith & Wesson Model 10. Since 1899, the Military & Police line has served soldiers, police officers, detectives, security men, and armed citizens in nearly every corner of the world. For collectors, though, much of the story lives in the dash numbers.
Those small numbers after “MOD. 10” are not just factory bookkeeping. They mark engineering changes, manufacturing updates, and, in some cases, meaningful collector dividing lines. A clean pinned-barrel Model 10-5 and a late internal-lock Model 10-11 may both be honest .38 Specials, but they represent very different chapters of Smith & Wesson history.
Use the GCC lookup tool along with the dash number inside the yoke cut. The serial number helps place the revolver in time; the dash number helps explain what engineering generation you are holding.
What Dash Numbers Mean on the Model 10
Smith & Wesson began using model numbers in the late 1950s, and dash numbers followed as a way to track engineering revisions. A revolver marked MOD. 10-5 is a Model 10 with the fifth major engineering variation.
A dash number does not automatically mean better quality or poorer quality. It tells you which factory changes had been adopted by the time that revolver was made. For collectors, that information helps date a gun, confirm whether its features belong, and separate common police trade-ins from scarcer variations.
Model 10 Dash Number Table
The following table covers the major post-model-number engineering changes collectors usually ask about. Years are approximate, because Smith & Wesson commonly used parts overlap and shipped revolvers after a change had already appeared in production.
| Dash | Approx. Years | Key Change | Collector Notes |
|---|---|---|---|
| 10-1 | 1959 | Trigger guard screw eliminated | Start of the modernized four-screw K-frame pattern. |
| 10-2 | 1961 | Cylinder stop stud changed | Minor internal update, but still useful for identification. |
| 10-5 | 1962-1977 | Heavy barrel introduced | One of the classic police duty configurations and a common trade-in find. |
| 10-6 | 1962-1977 | Standard barrel version | Parallel production with the 10-5; slimmer barrel profile. |
| 10-7 | 1977-1988 | Gas ring moved to yoke | Improved reliability during dirty or heavy firing. |
| 10-8 | 1988-1997 | Radius stud package and floating hand | Modernized lockwork before the later MIM-parts era. |
| 10-9 | 1988-1997 | Standard barrel version of 10-8 | Less commonly encountered than the heavy-barrel 10-8. |
| 10-10 | 1997-2002 | MIM parts and frame changes | Late production, often good shooters but less pursued by old-school collectors. |
| 10-11 | 2002-2009 | Internal lock era | Represents the final major engineering chapter of regular Model 10 production. |
Dash-by-Dash Collector Breakdown
Model 10-1 — 1959
The 10-1 marks one of the early simplification steps after Smith & Wesson adopted model numbers. The trigger guard screw was eliminated, moving the gun away from the older five-screw lineage and toward the four-screw K-frame pattern.
Transitional features are not unusual in this period. That is part of the appeal, but it also means a collector should look at the whole gun rather than the dash number alone.
Model 10-5 — 1962 to 1977: The Heavy Barrel Workhorse
The 10-5 is the heavy-barrel Model 10 most collectors recognize from police holsters, estate collections, and trade-in counters. Smith & Wesson gave it a thicker barrel profile that added weight forward, steadied the gun, and helped control muzzle rise.
Police departments liked that combination. The 10-5 became one of the dominant law-enforcement revolver configurations of the 1960s and 1970s. Clean examples still turn heads, especially when the nickel finish is sharp and the gun has not been polished to death.
Model 10-6 — 1962 to 1977: The Standard Barrel Twin
The 10-6 belongs to the same engineering period as the 10-5 but retains the slimmer standard, or pencil, barrel. Collectors often confuse the two until they open the cylinder and read the model marking in the yoke cut.
The standard barrel gives the revolver a different feel. It is lighter up front and, to some hands, better balanced. A serious K-frame collector can make room for both.
Model 10-7 — 1977 to 1988
The 10-7 moved the gas ring from the cylinder to the yoke. That may sound like a small shop-floor change, but it was aimed at keeping the revolver running better when hot, dirty, or heavily fired.
This is the kind of engineering change that reflects how the Model 10 was actually used. Departments were shooting more qualification rounds, and a duty gun had to keep working after practice, rain, lint, and holster wear.
Model 10-8 — 1988 to 1997: Modernized Lockwork
The 10-8 brought the radius stud package, floating hand, and updated internal geometry. Many shooters regard this as one of the best practical Model 10 variations: modern enough mechanically, but still before the late MIM-parts and internal-lock period.
For a collector who also shoots his revolvers, the 10-8 is worth a second look. It may not have the early pinned-barrel romance, but it often has a smooth action and plenty of service life left.
Model 10-9 — Standard Barrel Version of the 10-8
The 10-9 is the standard-barrel counterpart to the 10-8. It is less common in many local markets simply because heavy-barrel police guns were so widely issued and later traded back into circulation.
Model 10-10 — 1997 to 2002
The 10-10 belongs to the MIM-parts era, with frame changes and updated manufacturing processes. These guns do not carry the same collector pull as earlier pinned-barrel or pre-MIM examples, but many are reliable, clean, and undervalued shooters.
Model 10-11 — 2002 to 2009
The 10-11 brought the internal lock and represents the final major engineering change in the long Model 10 story. It is usually the least collectible dash among traditionalists, but historically it closes the book on one of Smith & Wesson’s most important service revolvers.
Pinned vs. Unpinned Barrels
Collectors pay attention to pinned barrels because they mark an earlier way of building Smith & Wesson revolvers. Pinned barrels ended around 1982, so early dash numbers and some 10-7 revolvers may have them, while later 10-8 and newer guns are generally unpinned.
A pinned barrel does not automatically shoot better. It does, however, place the gun in a period many collectors prefer. When condition is equal, earlier pinned examples usually have stronger collector appeal.
Heavy Barrel vs. Standard Barrel
The heavy-barrel Model 10 has a thicker profile, less muzzle rise, and a duty-gun feel. It is most closely associated with police service and is found on variations such as the 10-5, 10-7, 10-8, and 10-10.
The standard-barrel Model 10 has a slimmer barrel and a livelier balance. It appears on variations such as the 10-6 and 10-9 and carries its own appeal, especially for collectors who like the earlier Military & Police handling qualities.
Important Model 10 Variants
Model 10 collecting is not only about dash numbers. Barrel length, butt shape, finish, markings, and contract history all matter. Common barrel lengths include 2-inch, 4-inch, and 6-inch guns, while 3-inch and 5-inch examples tend to draw more attention when original.
Square-butt and round-butt frames each have a following. Bluing is the traditional finish, nickel has its own character, and parkerized or contract-marked examples tie the Model 10 back to wartime and police history.
How to Identify Your Model 10

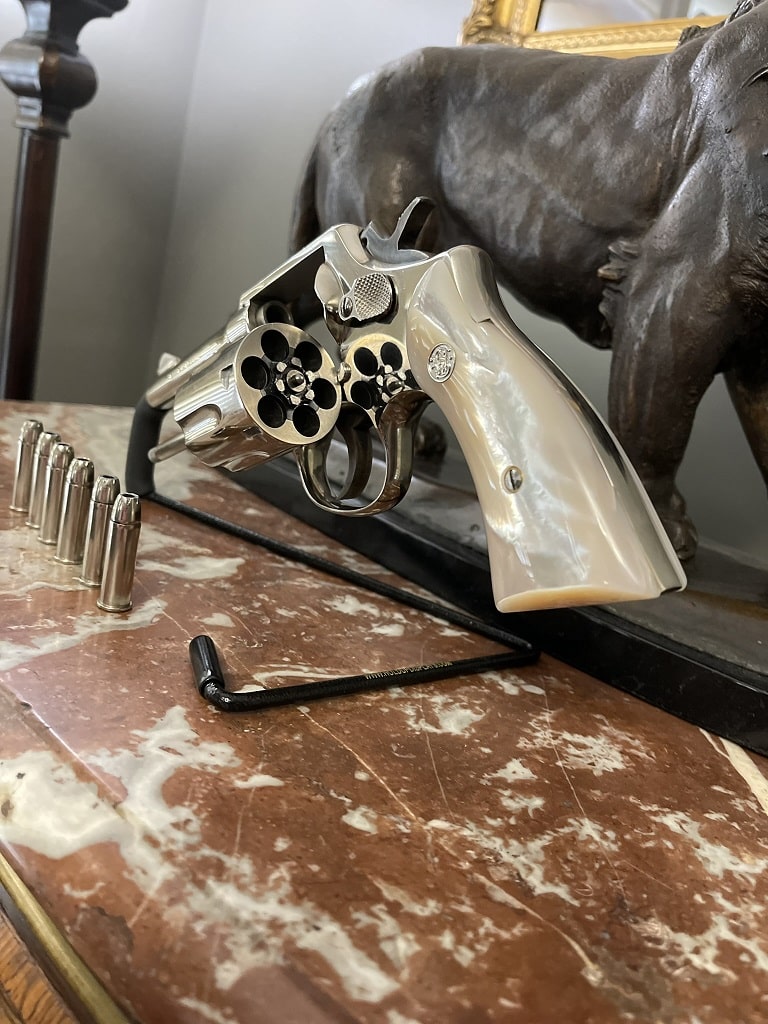

Open the cylinder and look at the flat yoke cut inside the frame. You should see a marking such as MOD. 10-5 or MOD. 10-8. Write that down exactly, then compare the dash number with the serial number, barrel profile, finish, butt shape, and other visible features.
That two-step approach prevents a lot of mistakes. The serial number helps you estimate the production period. The dash number tells you which engineering variation the gun should be. The physical features tell you whether the revolver still looks right.
Related Smith & Wesson Guides
The Model 10 sits at the center of Smith & Wesson K-frame history. These related pages help place it beside the company’s other service, target, and magnum revolvers.
Final Thoughts
The Smith & Wesson Model 10 is easy to overlook because so many were made. That is also why it rewards careful study. The dash number turns a common .38 Special into a specific revolver from a specific point in Smith & Wesson’s long production history.
Whether you are buying, selling, inheriting, or documenting one, the dash number is the first real clue. From there, the rest of the gun starts to make sense.
