The fastest reliable distinction is written on the gun. Belgian examples were manufactured by Fabrique Nationale at Herstal and ordinarily carry Belgian origin legends and Liège proof marks. Japanese examples were manufactured by Miroku and ordinarily carry a Japanese origin legend. Wood color, engraving, rib style and general polish can support the identification, but none is conclusive by itself.

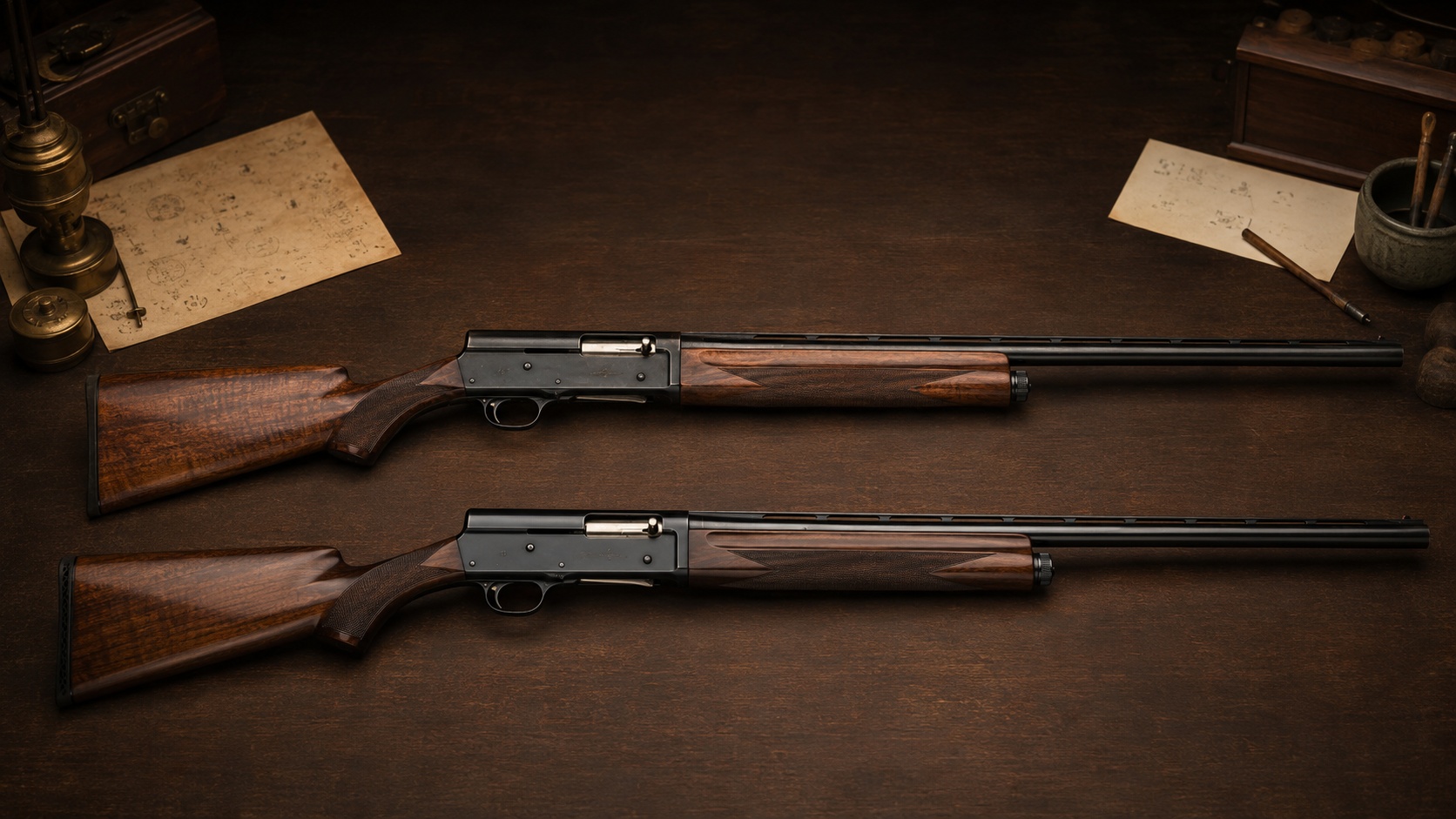

Belgian vs Japanese Auto-5 at a glance
| Evidence | Belgian FN Auto-5 | Japanese Miroku Auto-5 |
|---|---|---|
| Origin legend | Typically “Made in Belgium” and/or Fabrique Nationale, Herstal wording | Typically “Made in Japan” on the barrel |
| Proof evidence | Liège proof-house marks may include the crowned or starred controller marks, Perron and oval ELG motifs appropriate to the period | Does not carry the traditional Belgian Liège proof set; Japanese factory and inspection marks vary |
| Main production era | Commercial production from the early 1900s through the mid-1970s, with special later Belgian runs | Regular production beginning in the mid-1970s and continuing through the end of classic Auto-5 production in 1998 |
| Choke arrangement | Many barrels have a fixed choke; some later or replacement barrels differ | Fixed-choke barrels exist, while many later Japanese barrels use Browning Invector choke tubes |
| Serial style | Several systems across a long production history: plain numbers, prefixes and later year/model coding | Later production commonly uses Browning’s two-letter year code with model/type coding and a production sequence |
| Collector pattern | Often commands a heritage premium, especially scarce grades and original high-condition examples | Respected for fit, finish and practical features; usually valued on condition, configuration and originality rather than Belgian origin |
1. FN versus Miroku markings
Belgian FN markings
Look for a Belgian origin statement and wording associated with Fabrique Nationale or Herstal, Belgium. Exact roll marks changed with gauge, destination market and production period, so the absence of one particular phrase does not automatically disqualify a gun. The strongest Belgian identification combines an appropriate receiver serial format with Belgian barrel legends and authentic Liège proofs.
Japanese Miroku markings
Japanese-production Auto-5 barrels normally state MADE IN JAPAN. Browning branding and importer/address wording can vary over the production span. Some guns do not display “Miroku” prominently, so the Japanese origin statement is more useful than searching for the maker’s name alone.
A barrel marked Japan on a receiver whose serial number dates to the Belgian era is not necessarily counterfeit. It may simply be a legitimate replacement barrel. For collector classification, the receiver establishes the gun’s core identity; the barrel determines whether the present assembly remains period-correct.
2. Serial-number formats
The Auto-5’s serial history is too long and varied for a single visual rule. Early guns used sequential numbering. Later FN production introduced gauge, model and year-related prefixes or suffixes. Japanese-era guns commonly use Browning’s later alphanumeric system, including a two-letter date code and a model/type code.
In Browning’s letter-year system, the numerals are represented by Z=1, Y=2, X=3, W=4, V=5, T=6, R=7, P=8, N=9 and M=0. Thus, the pair must be decoded as two digits rather than read as initials. Position and adjoining model codes matter; do not date a gun from two letters taken out of context.
- Copy the complete receiver serial number exactly, including every letter.
- Do not substitute a barrel number or assembly mark for the receiver serial.
- Confirm the decoded year against the origin legend and production era.
- Use the Browning A5 serial-number lookup and date chart for year identification.
- Consult the detailed Auto-5 serial-number guide when prefixes, suffixes or model codes are unclear.
3. Barrel legends and proof marks
Belgian barrels were submitted to the Liège proof system. Depending on date and test, collectors may encounter an oval ELG device, the tower-like Perron, controller marks and smokeless-powder proof symbols. Their exact form changed over time. A single indistinct stamp is not enough; use the complete group and its placement.
A Japanese barrel should not be “made Belgian” merely because it fits a Belgian receiver. Conversely, a Belgian barrel mounted on a Japanese receiver does not convert the receiver into an FN-manufactured gun. For a high-value purchase, photograph all stamps under the forearm and near the chamber and compare them with documented marks from the relevant period.
| Inspection point | What to record | Why it matters |
|---|---|---|
| Left and right barrel flats/side | Full address, origin and Browning legends | Usually the clearest country clue |
| Area beneath the forearm | All proof, controller and assembly stamps | May confirm Belgian proof and expose a replacement barrel |
| Receiver bottom and loading port area | Complete serial and adjacent letters | Dates and classifies the receiver |
| Chamber and choke inscriptions | Gauge, chamber length, choke designation and steel markings | Helps establish barrel period and intended ammunition |
4. Fixed choke versus Invector
Most older Belgian Auto-5 barrels were made with a fixed choke, commonly identified by a word, abbreviation or traditional choke marking on the barrel. Japanese Auto-5 production includes fixed-choke barrels as well, so a fixed choke does not prove Belgian manufacture.
Many later Miroku barrels were offered with Browning’s interchangeable Invector choke system. Look for an Invector marking and a removable tube at the muzzle. An Invector-equipped barrel is a strong late-production clue, but it still identifies the barrel—not automatically the receiver beneath it.
Never infer choke solely by looking into the muzzle, and do not fire steel shot through an older barrel based only on country of manufacture. Read the barrel’s markings and have choke, chamber and barrel suitability checked by a qualified gunsmith when uncertain.
5. Rib, safety and finish differences
Rib
Plain, solid-rib and ventilated-rib barrels appear across the Auto-5 family. Vent-rib post spacing, rib profile and muzzle treatment can help place a barrel within an era, but rib style alone cannot establish Belgium versus Japan. Replacement and aftermarket barrels are common.
Safety
Very early Auto-5s may have a front-of-trigger or “suicide” safety; later examples use a cross-bolt safety at the rear of the trigger guard. Because the change occurred long before Japanese production, the cross-bolt safety is found on both later Belgian and Japanese guns. It separates early from later design, not Belgium from Japan.
Finish and engraving
Belgian guns are often associated with deep polish, hand-finished details and traditional FN engraving patterns. Japanese Miroku guns can also show excellent machining, polish and wood-to-metal fit. Grade, year, use and refinishing affect appearance more than nationality alone. Inspect screw slots, engraving edges, lettering depth and color consistency for evidence of a refinish.
6. Production periods and the transition
The transition was not a clean overnight divide for every gauge, grade and inventory shipment. A sales date can trail a manufacturing date, and factory or owner-installed replacement barrels can combine characteristics from different periods.
7. Collector implications
Belgian manufacture often brings a market premium because collectors associate FN production with the Auto-5’s original manufacturing tradition. That premium is not automatic. Condition, gauge, grade, barrel configuration, originality, factory engraving, matching period features and documentation can matter more than the country name.
Japanese Miroku Auto-5s are not inferior copies. They are Browning-production guns known for consistent manufacture and, on many later examples, practical features such as interchangeable chokes. A high-condition Japanese gun in a desirable configuration may be more valuable and more useful than a worn, altered or refinished Belgian example.
Before assigning collector value
- Confirm the receiver’s production period from the complete serial number.
- Determine whether the barrel is country- and period-correct for the receiver.
- Check whether choke, rib, stock, buttplate and engraving match the stated grade.
- Look for refinishing, buffed legends, rounded receiver edges and damaged screw slots.
- Separate factory special-order work from later engraving or customization.
- Value the exact gauge and configuration—not merely “Belgian” or “Japanese.”
A five-minute identification workflow
- Unload and verify safe condition. Keep ammunition away from the inspection area.
- Read the receiver serial. Copy letters, numbers and their order.
- Read both sides of the barrel. Locate Belgium/Japan wording, gauge, chamber and choke information.
- Inspect concealed marks. With safe, proper disassembly, record proofs and assembly marks beneath the forearm.
- Reconcile the evidence. If serial era, origin legend, proofs and features agree, the identification is strong. If they conflict, classify the barrel and receiver separately.
